Denali Lighting

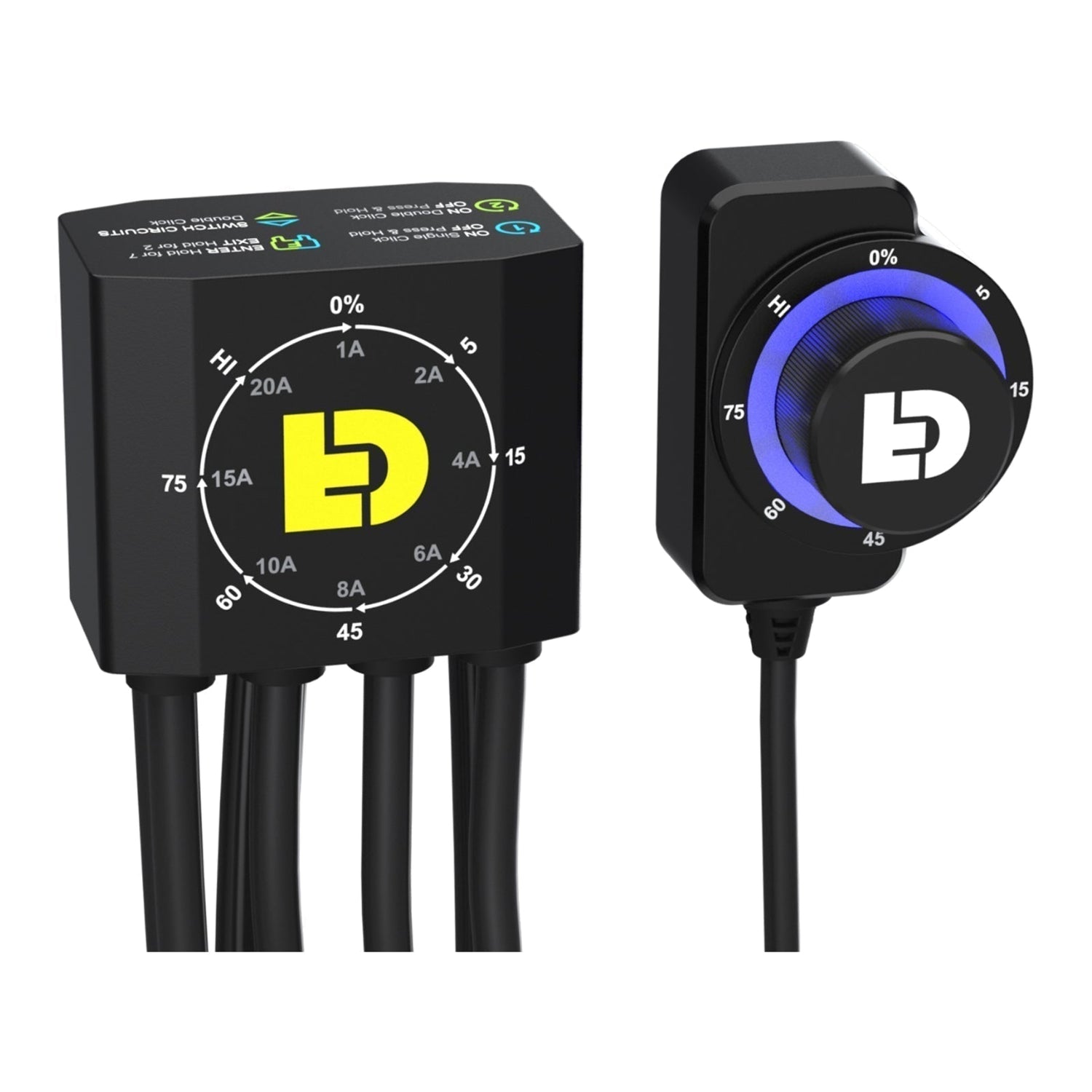

DENALI DIALDIM LIGHTING CONTROLLER

Regular price
$548.79
Regular price
$559.99
Sale price
$548.79
Tax included.
Default

Our ground-breaking DialDim™ Lighting Controller features a multicolor halo dimming switch that allows you to independently turn on/off and dim two sets of auxiliary lights from a single consolidated wiring harness. The LED halo switch displays your exact settings and allows for effortless dimming on the fly. The blue halo controls light set one and the green halo controls light set two; simply double click to switch between the two circuits.

The controller also features high beam turn signal and horn inputs to unlock intelligent flash features that can cancel your aux lights with your turn signal flash your aux lights as a turn signal or strobe your lights when you sound your horn.

More Features More Feedback!

Our patent-pending multicolor halo dimmer switch can do a whole lot more than just turn your lights on and off and dim them. For starters it displays the exact intensity of both of your lights so you're never stuck guessing if your lights are on or what intensity they're set to.

Thanks to the electronically fused circuits the halo switch can also display and allow you to select the fuse values for each circuit. And if a fuse trips the LED halo will turn red providing real-time feedback and allow for resetting the fuse.

Last but not least the switch halo doubles as a battery monitor with a low-voltage cutoff feature. Our industry-first design will flash different colors on startup to display your battery health and automatically shut off your auxiliary lights if the battery voltage drops below 10.8 volts.

Features:

  • ON/OFF & Dim - Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.
  • High/Low Sync - Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle's high beam circuit to enable this feature.
  • Stealth Mode - A clever 0% dim setting on the switch allows your lights to be off during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.
  • Cancel with Turn Signal - When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent washing out your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.
  • Flash as Turn Signal - When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.>
  • Strobe with Horn - When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.
  • Electronically Fused Circuits - Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.
  • Voltage Display Indicator - Upon vehicle startup the switch halo will flash green to indicate a healthy battery voltage or flash red to indicate a battery voltage that is below 11.8v.
  • Low Voltage Cutoff - If the battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

Product Specs:

  • Two fully independent light circuits
  • Eight intensity levels per circuit (5% 15% 30% 45% 60% 75% 100%)
  • Eight electronic fuse values (1A 2A 4A 6A 8A 10A 15A 20A)
  • Five feature input wires (ignition high beam horn left turn right turn)
  • 20A max per circuit (30A max combined)
  • Operating Voltage: 12 VDC

What’s In The Box?

  • (1x) DialDim™ Controller Harness
  • (1x) DialDim™ Multi-function Switch
  • (1x) 7/8 Handlebar Switch Mount
  • (4x) 66 Plug-&-Play Light Extensions
  • (1x) Universal Input Trigger Wire Harness
