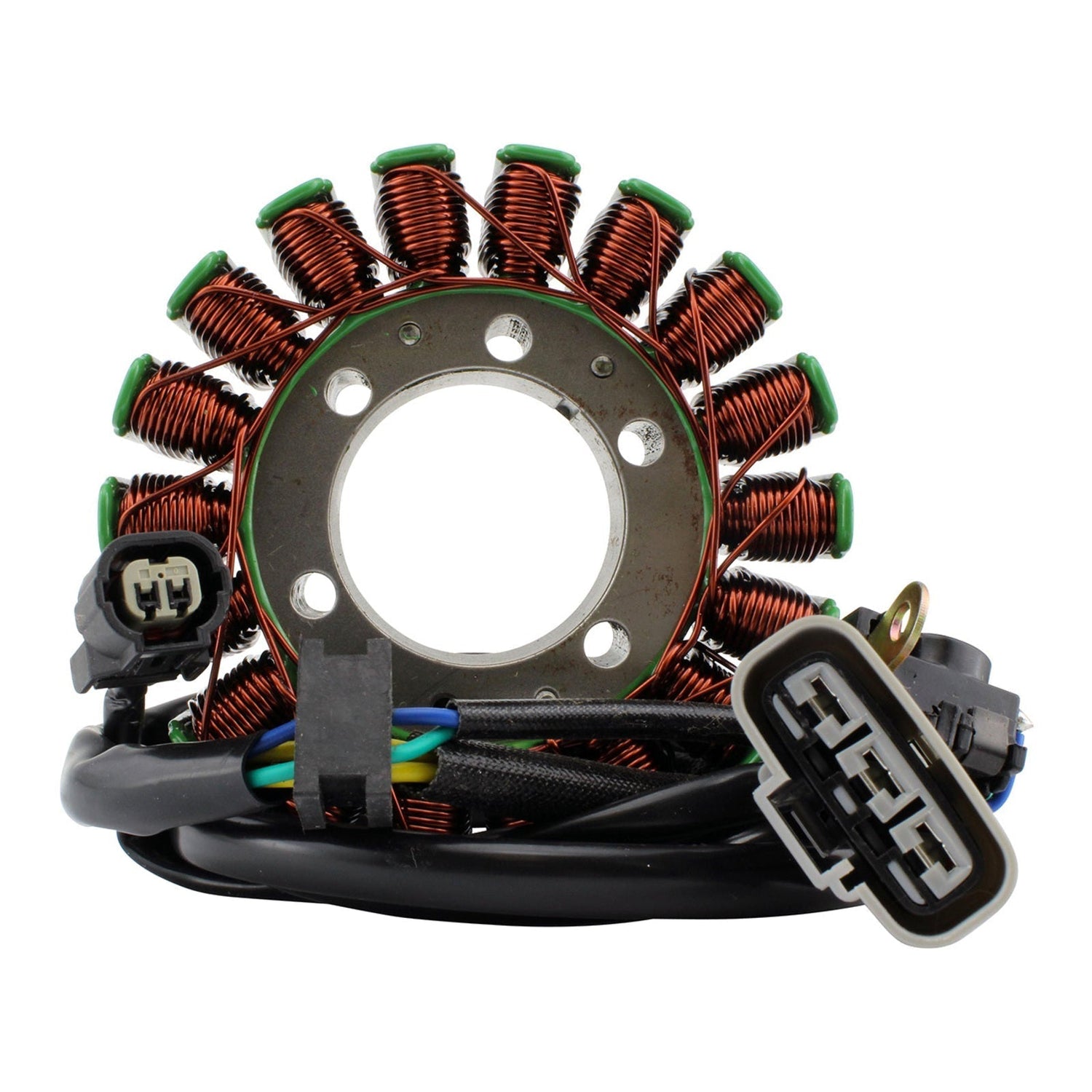

STATOR HON TRX500FM/FE/FA FOREMAN 2014-2019 (RMS010-106262) #RMS010106262

Regular price
Regular price
Sale price
Tax included.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions :

  • Interior diameter: 40 mm
  • Exterior diameter: 105 mm
  • Thickness: 35 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 940 mm
  • Length of pickup coil's wire to grommet: 60 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator 3p: Between each Yellow = 0.5 ohms +-20%
  • Source: Blue/Yellow to Green = 240 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

|Fitment| We are happy to confirm if this will fit. Guides require us to know the Year, Make, Model, Submodel (if there is one) and CC. If you could provide that info we would appreciate it.
